Single Ball Mill

Innovative design features, including variable speed control (can accommodate a large range of jar sizes), inverter controlled drive for high electrical efficiency, drop-in slots for quick roller bar change-out, easily accessible roller shaft bands and wrapped in a beautiful Stainless Steel shroud making Peter Pugger’s Single Ball Mill the first choice for small-scale to large-production milling.



$1,899.USD


MODEL:   5 Quart Jar

DIM:  8.5″Dia. x 11″Ht.

WT.:  18 lbs.

RETAIL PRICE:       $285/ea.


MODEL:   3 Gallon Jar

DIMS:  11.5″Dia. x 14.5″Ht

WT.:   32 lbs

RETAIL PRICE:       $450/ea.


These deluxe ball mill jars are made of high quality porcelain and are designed to be used in conjunction with the Peter Pugger Double Ball Mill. The deluxe jars have a large mouth and thicker walls than standard jars. The capacity stated is the liquid capacity of the jar including the recommended amount of alumina grinding media. The deluxe jars come with an end cap and clamp.


BALL SIZE:       1/2″

RETAIL PRICE:     $10/lb.

QUANTITY PER LB.:   100ea./lb.


 BALL SIZE:       3/4″

RETAIL PRICE:     $10/lb.

QUANTITY PER LB.:   30ea./lb.


BALL SIZE:       1″

RETAIL PRICE:     $10/lb.

QUANTITY PER LB.:   15ea./lb.


BALL SIZE:       1 1/4″

RETAIL PRICE:     $10/lb.

QUANTITY PER LB.:   7ea./lb.

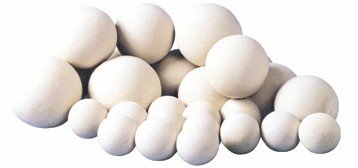

These white alumina grinding balls are non-contaminated and assure thorough mixing and grinding. Typically a ball mill jar is filled with 55% grinding balls (equivalent to a combination of 3-5 lbs. of each size).

Specifications

  • Jar Capacity: 3″ diameter min. diameter up to 18″ max. diameter
  • Dimensions: 22″L x 17″W x 15″H
  • Crated Weight: 62 lbs. (Ships UPS/FED EX Ground)
  • Electrical: 1/4Hp, 1ph, 4 amps 120V, 2 amps 240V
  • Pug Size: 3″ round
  • Options: 3-phase, 50hz and other motors are available on special orders.
